EC100 48V 100A Battery Charger | 5.78KW Max Output | Soft Start |120V 240V AC Input
EC100 48V 100A Battery Charger for High-Power Energy Systems
48V 100A Smart Battery Charger(AC-DC)
| Battery Voltage | 48V |

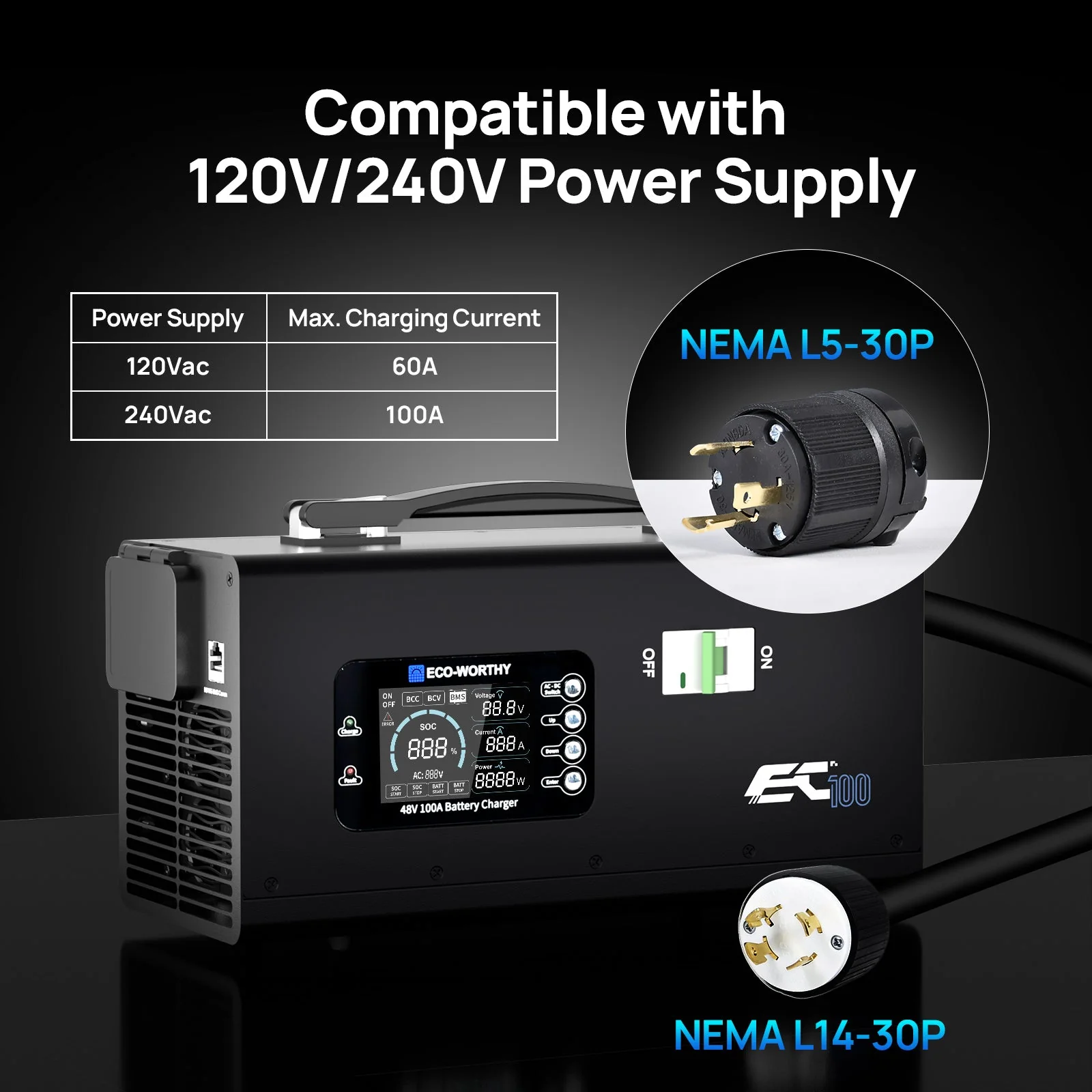

| Rated AC Input Voltage |
90-260Vac
|
| Max AC Input Current |
28A@240Vac/14A@120Vac
|

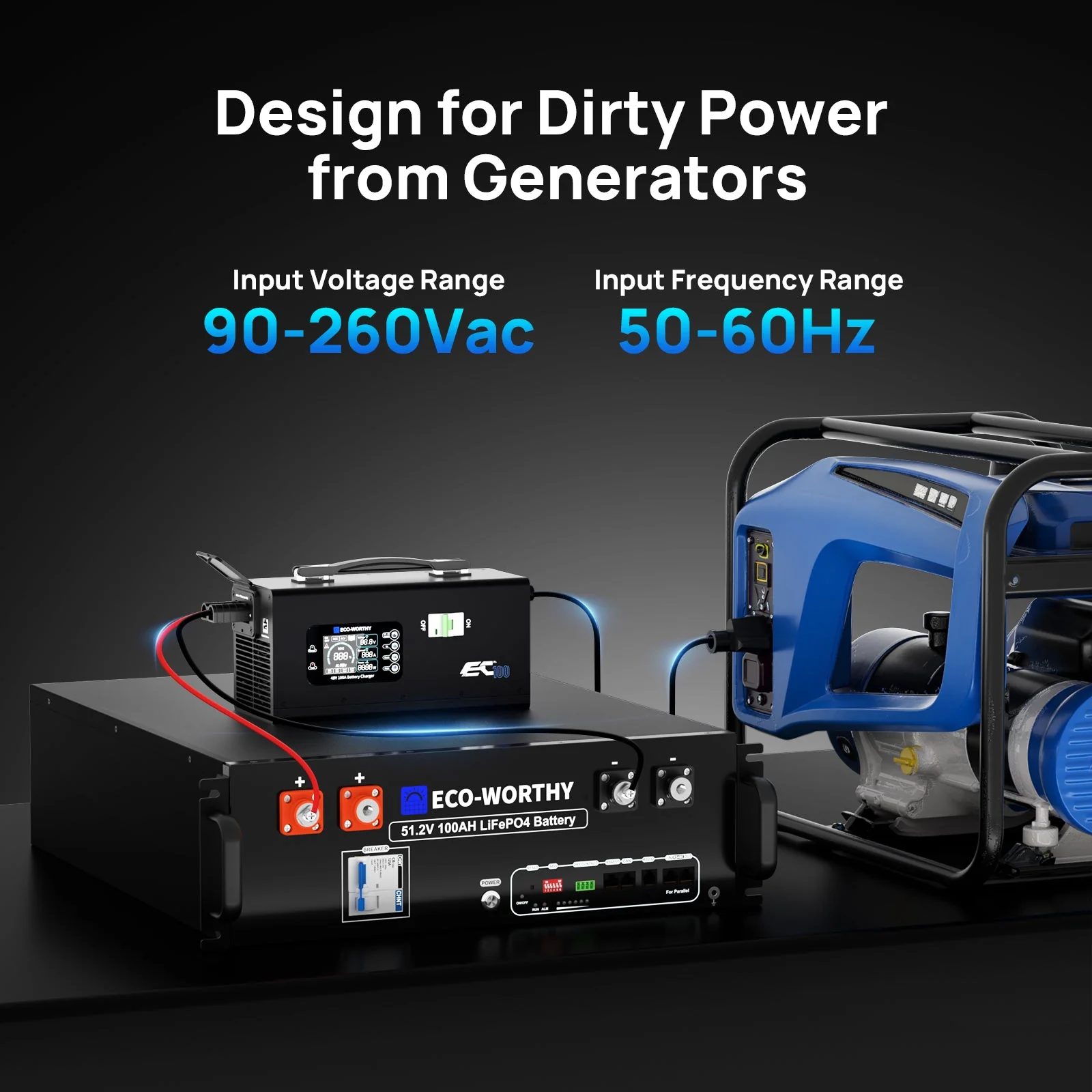

| Recommended Generator |
8KW@240Vac/4KW@120Vac
|
| Efficiency |
92% @240Vac ；88% @120Vac
|
| Rated AC Input Frequency |
50-60Hz
|
| Battery Type | LiFePO4、Lead-acid、AGM、LiNiCoMn |
|
DC Charge Voltage (Adjustable)
|
42-57.8V（default 57.6Vdc）
|
| DC Charge Current(Adjustable) |
2-100A@240Vac；2-60A@120Vac
|

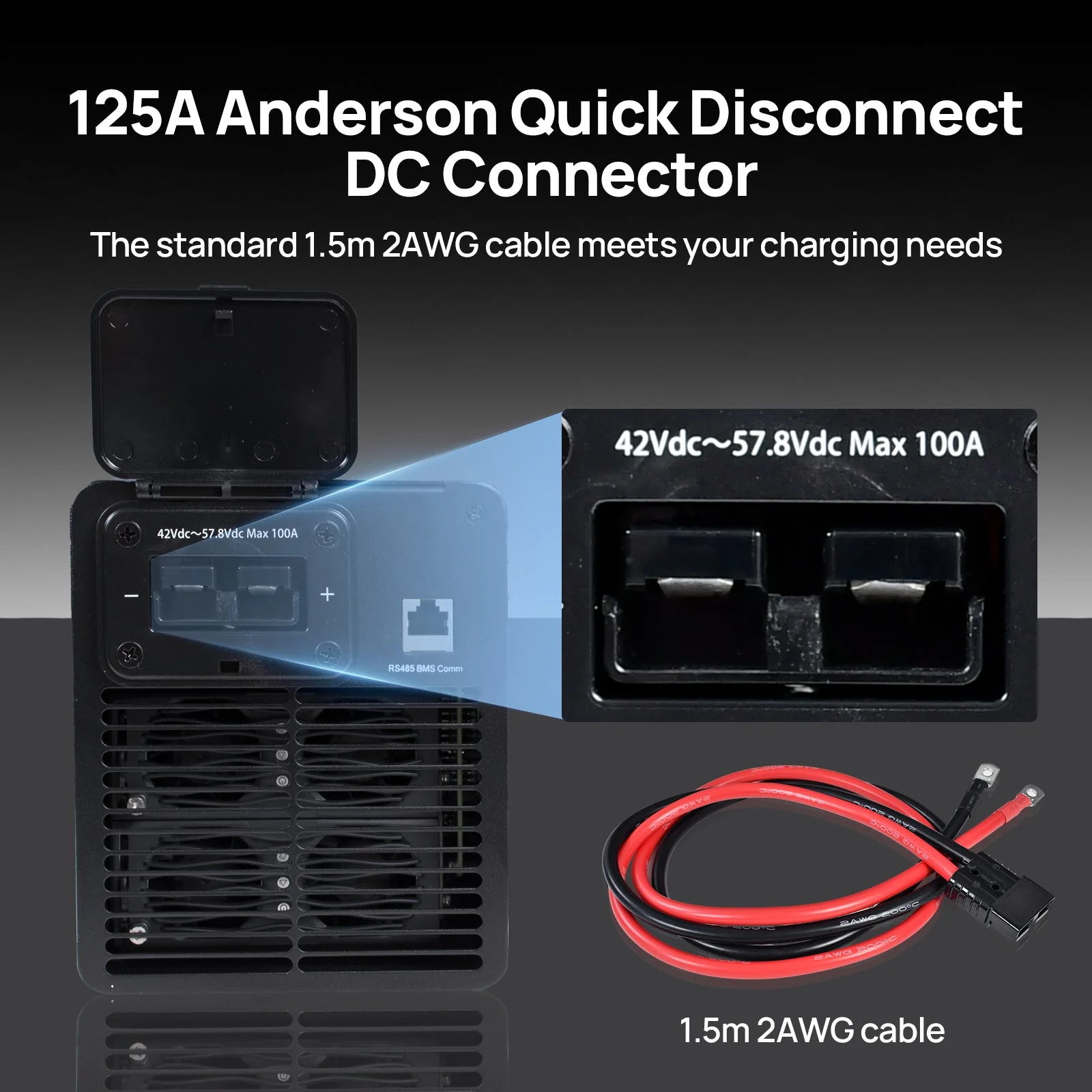

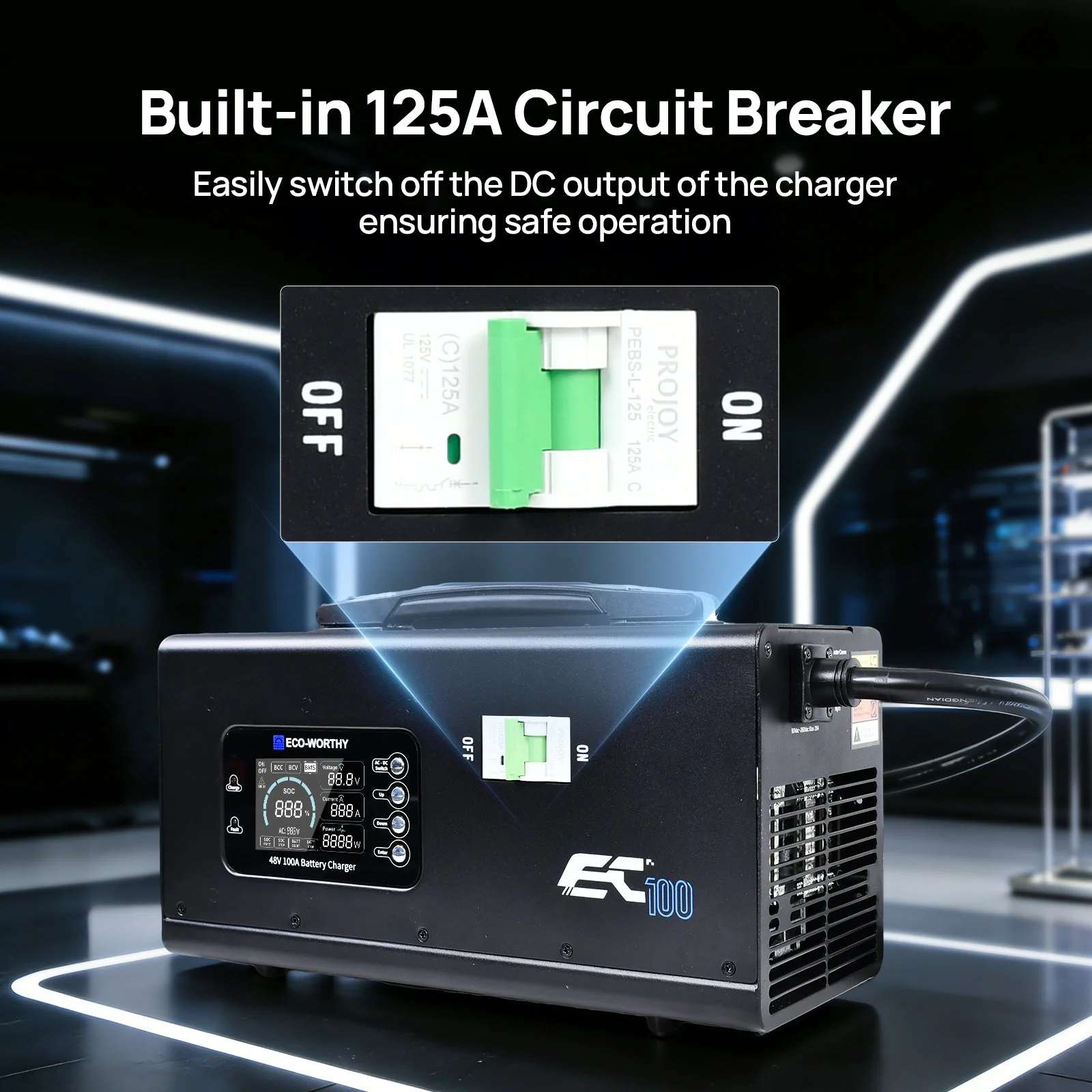

| DC Output Circuit Breaker |
125A
|
|
|
5780W@240Vac/2890W@120Vac |
| IP Rating |
IP20（Indoor）
|
|
Weight
|
14.33Ibs/6.5kg
|
|
Dimensions (L × W × H)
|
12.8*5.3*6.3in/325*135*160mm
|
|
Warranty
|
3 Years
|
|

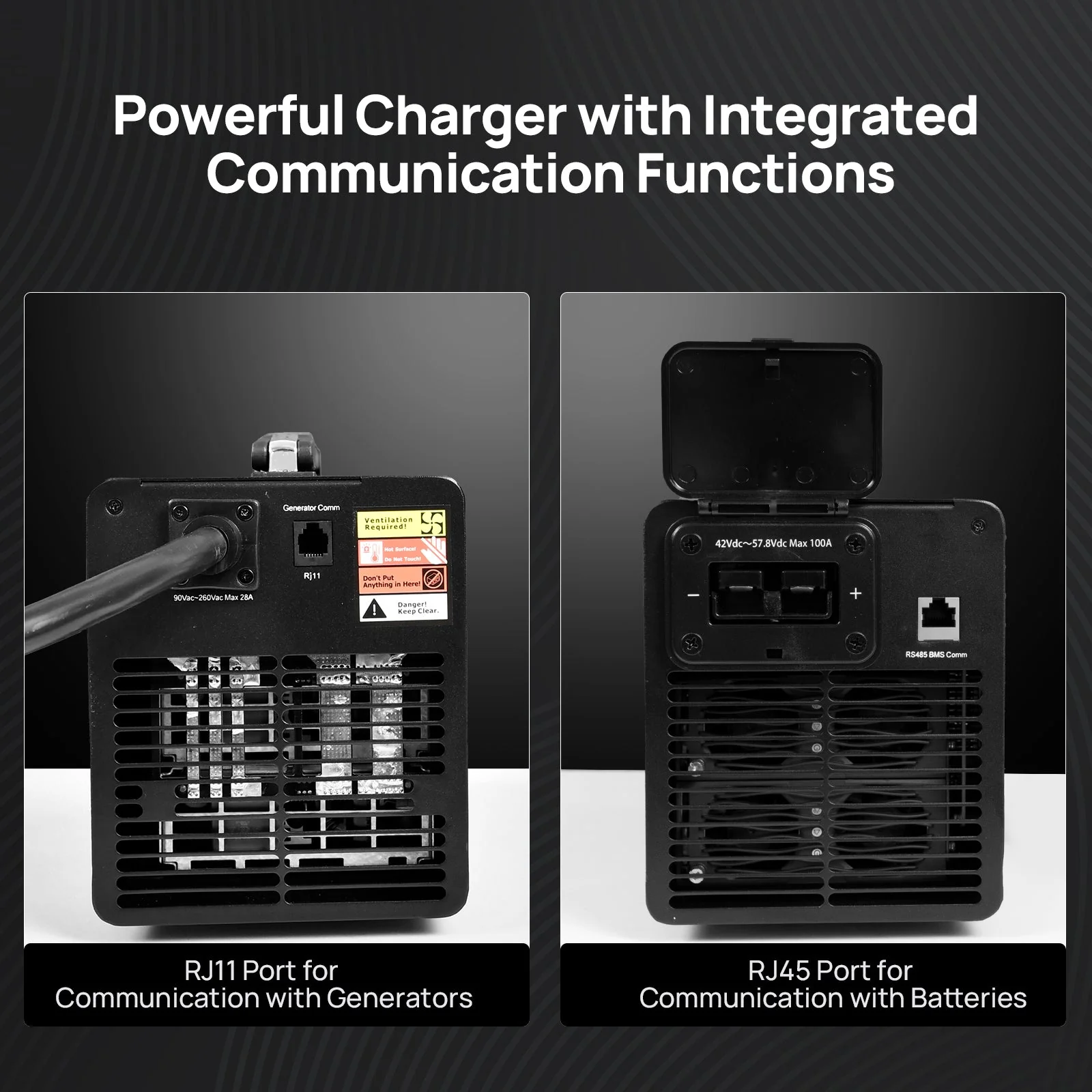

BMS Communication Protocol
|
RS485 (RJ45 Jack)
|
|
Dry Contact Port
|
NO, NC, and C (RJ11 Jack
|
Product Information
Product Information
Shipping & Returns
Shipping & Returns
EC100 48V 100A Battery Charger | 5.78KW Max Output | Soft Start |120V 240V AC Input
EC100 48V 100A Battery Charger | 5.78KW Max Output | Soft Start |120V 240V AC Input
EC100 48V 100A Battery Charger for High-Power Energy Systems
48V 100A Smart Battery Charger(AC-DC)
| Battery Voltage | 48V |
| Rated AC Input Voltage |
90-260Vac
|
| Max AC Input Current |
28A@240Vac/14A@120Vac
|
| Recommended Generator |
8KW@240Vac/4KW@120Vac
|
| Efficiency |
92% @240Vac ；88% @120Vac
|
| Rated AC Input Frequency |
50-60Hz
|
| Battery Type | LiFePO4、Lead-acid、AGM、LiNiCoMn |
|
DC Charge Voltage (Adjustable)
|
42-57.8V（default 57.6Vdc）
|
| DC Charge Current(Adjustable) |
2-100A@240Vac；2-60A@120Vac
|
| DC Output Circuit Breaker |
125A
|
|
Max. Output |
5780W@240Vac/2890W@120Vac |
| IP Rating |
IP20（Indoor）
|
|
Weight
|
14.33Ibs/6.5kg
|
|
Dimensions (L × W × H)
|
12.8*5.3*6.3in/325*135*160mm
|
|
Warranty
|
3 Years
|
|
BMS Communication Protocol
|
RS485 (RJ45 Jack)
|
|
Dry Contact Port
|
NO, NC, and C (RJ11 Jack
|
$147.00
Original: $489.99
-70%EC100 48V 100A Battery Charger | 5.78KW Max Output | Soft Start |120V 240V AC Input—
$489.99
$147.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
EC100 48V 100A Battery Charger for High-Power Energy Systems
48V 100A Smart Battery Charger(AC-DC)
| Battery Voltage | 48V |
| Rated AC Input Voltage |
90-260Vac
|
| Max AC Input Current |
28A@240Vac/14A@120Vac
|
| Recommended Generator |
8KW@240Vac/4KW@120Vac
|
| Efficiency |
92% @240Vac ；88% @120Vac
|
| Rated AC Input Frequency |
50-60Hz
|
| Battery Type | LiFePO4、Lead-acid、AGM、LiNiCoMn |
|
DC Charge Voltage (Adjustable)
|
42-57.8V（default 57.6Vdc）
|
| DC Charge Current(Adjustable) |
2-100A@240Vac；2-60A@120Vac
|
| DC Output Circuit Breaker |
125A
|
|
Max. Output |
5780W@240Vac/2890W@120Vac |
| IP Rating |
IP20（Indoor）
|
|
Weight
|
14.33Ibs/6.5kg
|
|
Dimensions (L × W × H)
|
12.8*5.3*6.3in/325*135*160mm
|
|
Warranty
|
3 Years
|
|
BMS Communication Protocol
|
RS485 (RJ45 Jack)
|
|
Dry Contact Port
|
NO, NC, and C (RJ11 Jack
|
